Pulsator

The Pulsator tokamak was operated at IPP in Garching from 1973 to 1979.

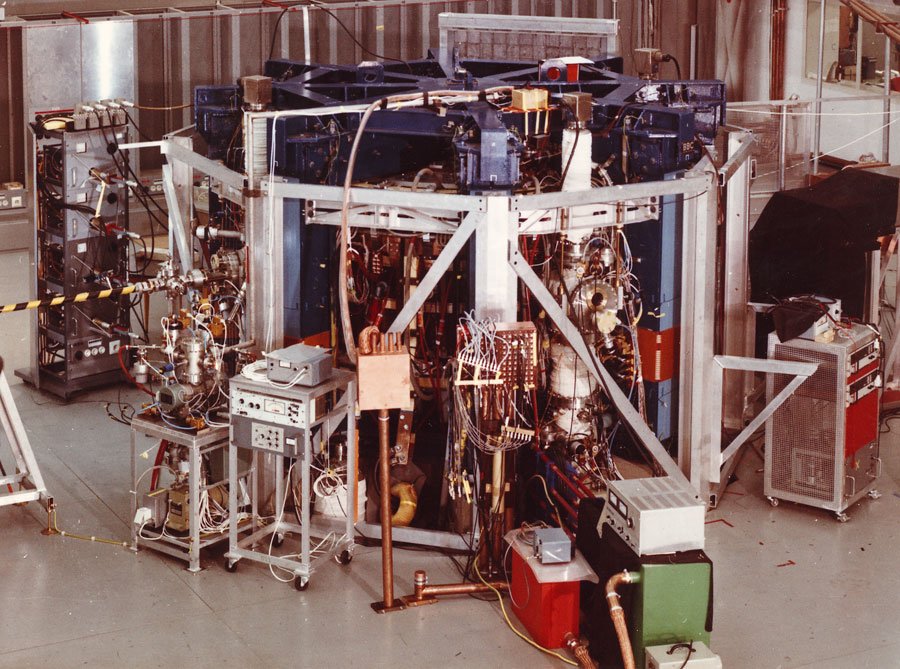

Pulsator, IPP’s first tokamak

Pulsator, IPP’s first tokamak, went into operation in 1973. The plasma of this small device was heated with just current; its ring shape was bounded with a metal limiter.




Pulsator saw the discovery of high-density operation with tokamaks. This raised the plasma density to sevenfold of that hitherto possible; at the same time thermal insulation and hence the energy content of the plasma were enhanced, this putting the plasma a step closer to ignition conditions.





 Technical data
 Major plasma radius 0.7 metres
 Minor plasma radius 0.12 metres
 Magnetic field 2.7 tesla
 Plasma current 0.125 megaamperes
 Puls lenth 0.12 seconds
 Plasma heating 0.13 megawatts
 Plasma volume 0.2 cubic metres
